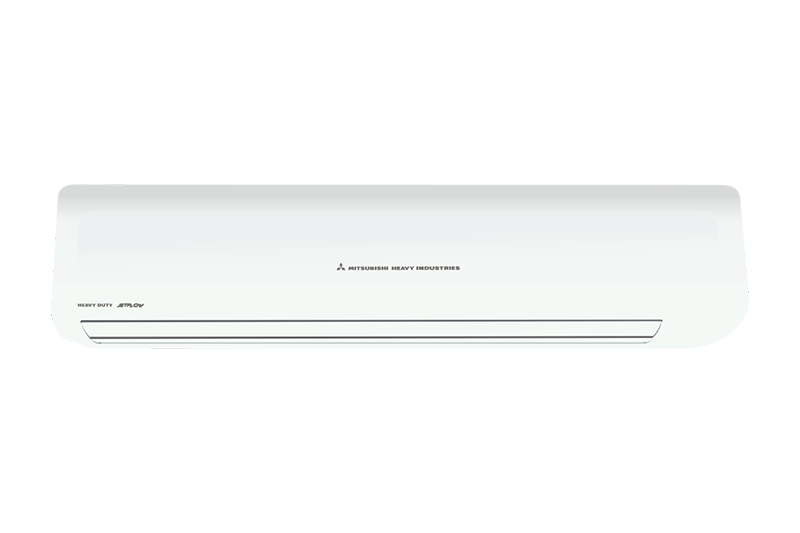

Mitsubishi Heavy Duty 2.2 Ton 3 Star Fixed Speed Split AC (SRK25CSS-S6/A, Copper Condenser, Super Tropical Rotary Compressor, 3D Surround Airflow, White)
Key Features
- Capacity: 2.2 Ton Suitable for large rooms (300 - 450 Sq. Ft.)
- Star Rating: 3 Star - Energy Efficiency, BEE Rated EER / COP: 3.72 W/W
- Copper Condenser Coil: Energy efficient, best in class cooling with easy maintenance
- Special Features: 3D + 3D Auto Louver Swing, Long Reach Airflow Up to 60 Feet, Super Tropical Compressor, Self Diagnosis, Jet Air Flow Technology
- Warranty: 1 Year Comprehensive Warranty, 1 Year on Condenser and 5 Years Warranty on Compressor
General Features
| Brand | Mitsubishi |
|---|---|
| Model Name | SRK25CSS-S6 |
| Model Number | SRK25CSS-S6/A |
| EMI | Available |
| Color | White |
| Release Date | July 10, 2018 |
| Appliances / Type | Air Conditioners / Split AC |
| Tonnage / Capacity | 2.2 Ton (2.17 TR BEE Rated) |
| Compressor Type | Super Tropical - Return Cooled Rotary Compressor |
| Condenser Coil | Copper |
| Maximum Cooling Capacity | 7700 Watts (26272 BTU/h / 2.2 Ton) |
| BEE Rated Cooling Capacity | 7625 Watts (26017 BTU/h / 2.17 Ton) |
| Area Coverage | 300 – 450 Sq. Feet (Up to 280 sq.ft nominal) |
| Country of Origin | Japan |
Energy Efficiency
| Maximum EER / COP | 4.28 W/W |
|---|---|
| BEE Rated EER / COP | 3.72 W/W |
| BEE Star Rating | 3 Star |
Noise Level
| Indoor Noise Level (H/M/L) | 46 / 42 / 39 dB |
|---|
Power & Electrical Data
| Power Source / Requirement | 1 Phase, 220 / 230 V, 50 Hz |
|---|---|
| Input Power / Power Consumption | 1800 – 2050 Watts |
| Operating Current (Min – Max) | 8.0 – 9.2 Amp |
| Air Flow Rate (CMH) | 1450 m³/hr |
| Long Reach Airflow | Up to 60 Feet |
| DC Fan Motor Speed | Auto / Powerful / High / Med / Low / Dry |
| Refrigerant Piping (Liquid Line) | 6.35 mm (1/4") |
| Refrigerant Piping (Gas Line) | 15.88 mm (5/8") |
| Main Power Supply To | Outdoor Unit (2.5 mm² x 3 cores with earthing cable) |
| Connecting Wiring | Between IDU & ODU: 1.5 mm² x 4 cores (with earthing cable) |
Filters
| Special Filters | Enzyme + Photocatalytic Deodorizing Filter + Anti-Bacterial Filter |
|---|---|
| Anti-Bacterial / Dust Filter | YES |
| Blower Fan Protection | Anti-Microbial Treatment |
Convenience & Advanced Features
| Refrigerant | R410A / R-410A |
|---|---|
| Refrigerant Injection in Coil | 5 Point - Multi Port |
| Louver Swing | 3D + 3D AUTO |
| Dehumidification | YES |
| Self Diagnosis Function | YES |
| Auto Restart | YES |
| Timer | YES |
| Remote Control Type | Wireless Remote Control |
| Technology Used | 3D Air Flow Technology, Jet Air Flow Technology |
Operating Mode
| Sleep Mode | YES |
|---|---|
| Dry Mode | YES |
| Powerful Mode | YES |
| Auto Mode | YES |
Dimensions & Weight
| Indoor Unit Size (H x W x D) | 33.9 x 119.7 x 26.2 cm |
|---|---|
| Outdoor Unit Size (H x W x D) | 75.0 x 88.0 (+8.8) x 34.0 cm |
| Net Weight (IDU / ODU) | 17 Kg / 57 - 60 Kg |
| Gross/Total Weight | 77 Kg |
Warranty
| Warranty Period | 1 Year Comprehensive Warranty, 1 Year Warranty on Condenser, and 5 Years Warranty on Compressor |
|---|---|
| Warranty Type | On Site |
Experience superior heavy-duty cooling with the Mitsubishi SRK25CSS-S6 2.2 Ton 3 Star Split Air Conditioner. Designed for large spaces ranging from 300 to 450 sq. ft., this unit combines long-throw air circulation with advanced filtration systems to ensure powerful and clean air projection across your room. Equipped with a Super Tropical Return Cooled Rotary Compressor, it maintains heavy-duty performance even under harsh ambient condition settings.
Browse through the extensive list of Air Conditioner at valueplusretail. Shop online for other valueplusretail — trusted for 20+ years, you also get fast delivery, genuine GST billing, and expert support across Delhi NCR.
Browse through the extensive list of Air Conditioner at valueplusretail. Shop online for other Carrier Air Conditioner available at valueplusretail.com in the lowest price range.
Long Reach Airflow: Engineered with Jet Air Flow and 3D Auto technology capable of casting cooled air up to 60 feet away for even temperature distribution throughout larger spaces.
Advanced Multi-Filtration: Combines Enzyme, Photocatalytic Deodorizing, and Anti-Bacterial filters along with an anti-microbial blower fan to capture micro-particles, neutralize odors, and suppress microbial growth.
Multi-Port Refrigerant Injection: Features 5-Point Multi-Port coil injection for optimized refrigerant cycle flow and efficient cooling conversion.
Super Tropical Compressor: Features a heavy-duty rotary compressor built to deliver consistent cooling performance under high heat loads.
Authorized Service Engineer will do the following: Provide replacement to the customer in case part / product is not repairable (only after replacement request approved). Repair Services: Repair / change the defective part under standard warranty guidelines.
