Samsung 1.5 Ton 3 Star Bespoke AI WindFree Smart Inverter Split AC (2026 Model, 5-in-1 Convertible, Wi-Fi, Voice Assistant, Copper Condenser, AR60H19D13WNNA, White)

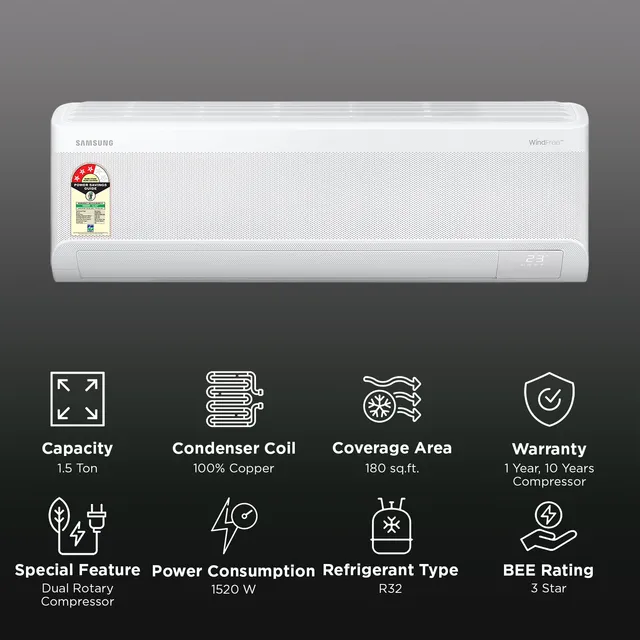

Key Features
- Capacity: 1.5 Ton (5.10 kW / 17402 Btu/hr) Suitable for medium to large rooms (Up to 180 sq.ft)
- Star Rating: 3 Star BEE Rating - Annual Energy Consumption: 890.54 Units Per Year, ISEER Value: 4.43 W/W
- Copper Condenser Coil: 100% Copper Condenser with DuraFin Ultra Anti-Corrosion Coating for enhanced durability
- Special Features: WindFree Cooling, 5 Step Convertible Mode, AI Auto Cooling, SmartThings Wi-Fi Enabled, Copper Anti-Bacterial Filter, Freeze Wash, Auto Clean
- Warranty: 1 Year Comprehensive Warranty and 10 Years Warranty on Digital Inverter Compressor
General Features
| Brand | Samsung |
|---|---|
| Model Name | AR60H19D13WNNA |
| Model Number | AR60H19D13WNNA |
| EMI | Available |
| Color | White / Plain White |
| Launch Year / BEE Rating Year | 2026 |
| Appliances / Type | Air Conditioners / Split System |
| Tonnage / Capacity | 1.5 Ton |
| Compressor / Inverter Technology | Yes (Digital Inverter Technology / Dual Rotary BLDC Compressor) |
| Condenser Coil | Copper (DuraFin Ultra Anti-Corrosion Fin) |
| Cooling Capacity (Rated) | 5.10 kW (5100 Watts / 17402 Btu/hr) |
| Cooling Capacity Range (Min - Max) | 1.3 kW ~ 6.0 kW (4,436 ~ 20,473 Btu/hr) |
| Annual Power Consumption | 890.54 KWH (Units Per Year) |
| Country of Origin | India |
Energy Efficiency
| ISEER Value | 4.43 W/W |
|---|---|
| EER (Cooling) | 3.36 W/W (11.45 Btu/hW) |
| BEE Star Rating | 3 Star |
| BEE Rating Year | 2026 |
Noise Level
| Indoor Noise Level (IDU) | High: 45 dBA / Low: 26 dBA |
|---|---|
| Outdoor Noise Level (ODU) | 53 dBA |
Power & Electrical Data
| Rated Power Supply | 230 V - 50 Hz - 1 Phase |
|---|---|
| Power Consumption | 1520 Watts |
| Operating Current (Cooling) | 6.7 Amps |
| Air Circulation | 15.2 ㎥/min (15.2 CMM) |
| Operating Temperature Range | 15 °C ~ 52 °C |
| Piping Limits (Max Length / Height) | 30 m / 15 m |
Filters & Air Purification
| Copper Anti-Bacterial Filter | YES |
|---|---|
| Easy Filter Plus | YES |
| Auto Clean (Self Cleaning) | YES |
| Filter Cleaning Indicator | YES |
Convenience & Advanced Features
| Refrigerant | R32 (0.67 kg / 0.45 tCO2e) |
|---|---|
| Air Swing | 4-Way Swing (Left/Right Auto, Up/Down Auto) |
| Air Flow Control Steps | 5 Cool / 4 Fan Steps |
| Cooling Technologies | WindFree Cooling, AI Auto Cooling |
| Convertible Modes | 5 Step Mode |
| Freeze Wash | YES |
| IDU Temp Display / Display On-Off | YES |
| Beep On/Off & Child Lock | YES |
| 24-Hour Timer & Auto Restart | YES |
| Special Protection & Design | Triple Protector Plus, DuraFin Ultra, Stabilizer Free Operation, Twin Muffler |
Smart Features
| Wi-Fi Connectivity | Embedded Wi-Fi Supported |
|---|---|
| App Connectivity | SmartThings App Support, SmartThings Home Care, Map View |
| Voice Controls | Bixby, Google Assistant, Amazon Alexa |
Operating Modes
| Available Modes | Auto Mode, Fast Cool, Dry Comfort, Good Sleep, Quiet, Dehumidification, Fan Mode, AI Energy Mode |
|---|

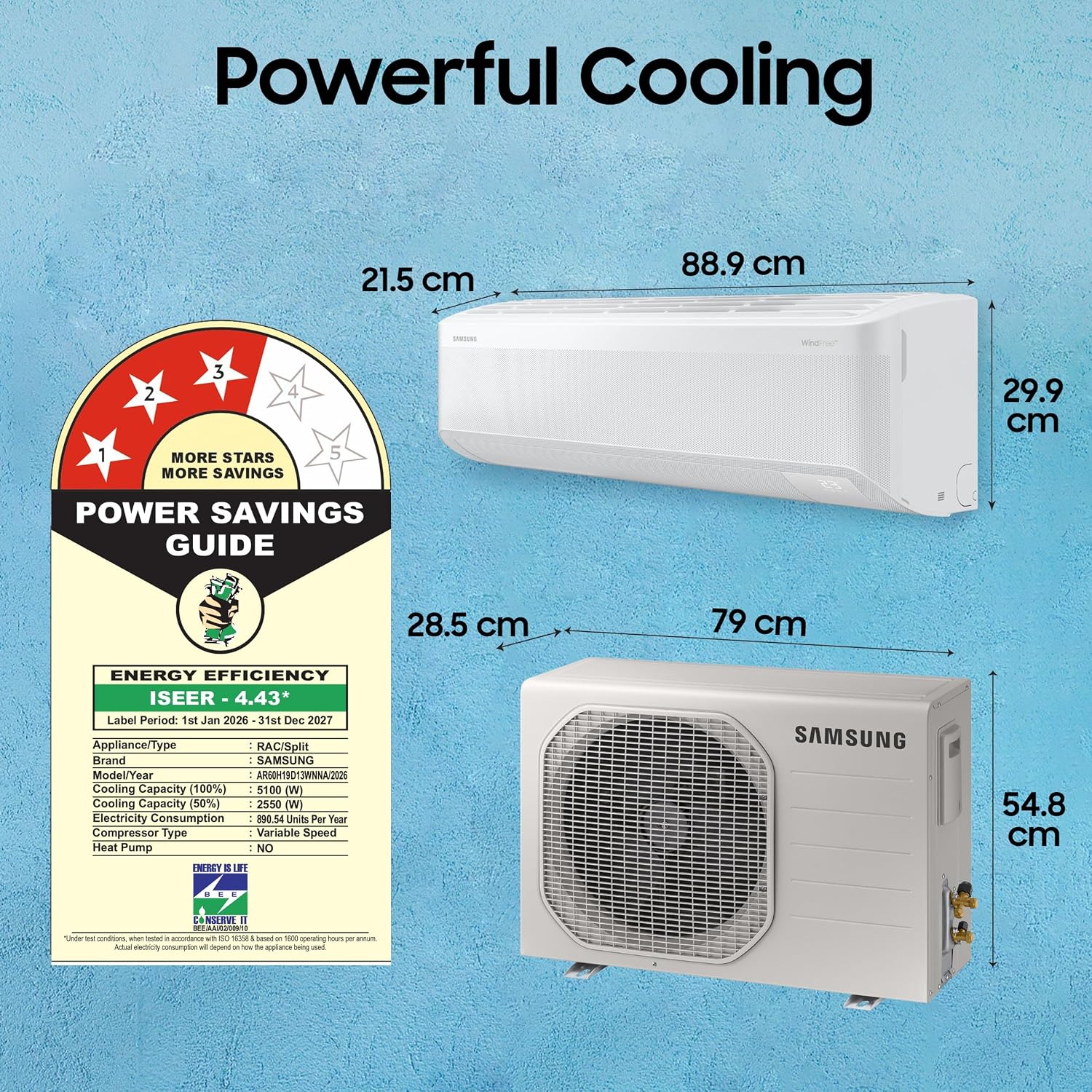

Dimensions & Weight
| Indoor Unit Net Size (W x H x D) | 88.9 cm x 29.9 cm x 21.5 cm |
|---|---|
| Indoor Unit Packing Size (W x H x D) | 95.0 cm x 29.0 cm x 37.5 cm |
| Outdoor Unit Net Size (W x H x D) | 79.0 cm x 54.8 cm x 28.5 cm |
| Outdoor Unit Packing Size (W x H x D) | 92.6 cm x 64.0 cm x 41.2 cm |
| Net Weight (IDU / ODU) | 10.0 Kg / 26.4 Kg |
| Gross Weight (IDU / ODU) | 11.5 Kg / 31.0 Kg |
| Area Coverage | Up to 180 sq.ft |
Warranty & Sales Package
| In The Box / Sales Package | 1 Indoor Unit, 1 Outdoor Unit, 1 Remote Control, 2 AAA Batteries, 1 Copper Pipe (3 Meters), 1 User Manual, 1 Warranty Card |
|---|---|
| Warranty Period | 1 Year Comprehensive Warranty, 10 Years Warranty on Compressor |
| Covered in Warranty | Manufacturing Defects |
| Not Covered in Warranty | Physical Damage |
| Warranty Type | Manufacturer On Site Service |
| Installation Type | Split Wall Mount Installation |
Upgrade your home comfort with the Samsung 1.5 Ton 3 Star Digital Inverter Split AC (AR60H19D13WNNA), engineered to deliver powerful and intelligent cooling. Featuring Samsung's innovative WindFree Cooling technology and AI Auto Cooling, this AC gently and quietly disperses air through thousands of micro-holes, avoiding harsh cold drafts. Armed with a 5-Step convertible cooling mode, it lets you easily adjust the power consumption according to your daily requirements. The 100% Copper Condenser with DuraFin Ultra technology shields the unit against corrosion, ensuring continuous, energy-efficient performance for years.
Browse through the extensive list of Air Conditioners at valueplusretail. Shop online for other valueplusretail — trusted for 20+ years, offering fast delivery, genuine GST billing, and expert support across Delhi NCR.
Explore the full range of Samsung Air Conditioners available at valueplusretail.com at the best price range.
WindFree Cooling Technology: Creates a comfortable cool environment without the unpleasant feeling of cold air blowing directly on your skin.
AI Auto Cooling & 5-Step Mode: Automatically optimizes cooling performance by analyzing room conditions and usage patterns, while giving you manual control to scale energy consumption across 5 levels.
DuraFin Ultra Protection: Advanced anti-corrosion layer on the condenser coil protects against harsh atmospheric conditions, maintaining optimal heat exchange performance.
SmartThings App & Voice Assistance: Integrated Wi-Fi allows full control via SmartThings app and compatibility with voice assistants including Bixby, Google Assistant, and Amazon Alexa.
Copper Anti-Bacterial Filter & Freeze Wash: Ensures healthy air output with easy-to-clean anti-microbial filters and self-cleaning Freeze Wash technology that removes dirt and bacteria automatically.
An authorized service engineer will manage the wall mount installation and provide repair or replacement of defective components as approved under the manufacturer warranty terms.
